Name: High capacity torque sensors 100kNM for reaction torque measurement
Brand: Forsentek
Price: 1 USD

Place of Origin : China

Brand Name : Forsentek

Model Number : FT03

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 3250pcs/month

Certification : CE

Usage : Torque measurement

Type : Reaction torque sensor

Output : Analog Transducer

Torque range : 0-100kNM

Structure : Flange-to-flange

Contact Now

Static torque sensors for reaction torque measurement up to 100kNm

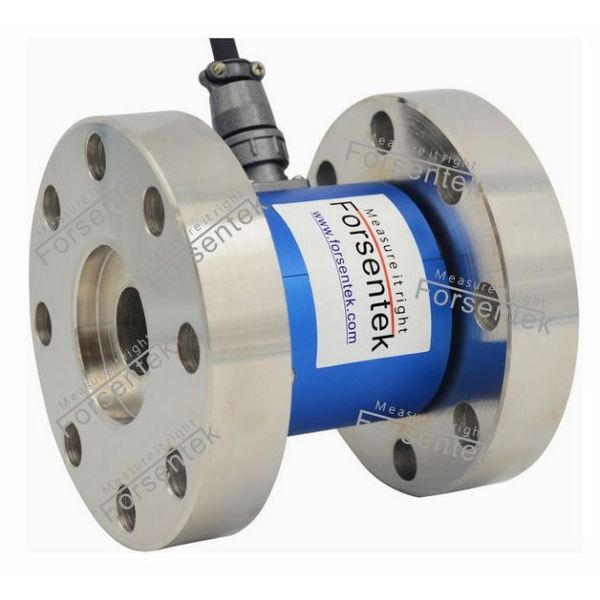

High capacity torque sensors 100kNM for reaction torque measurement
Features

High capacity torque sensors 100kNM for reaction torque measurement

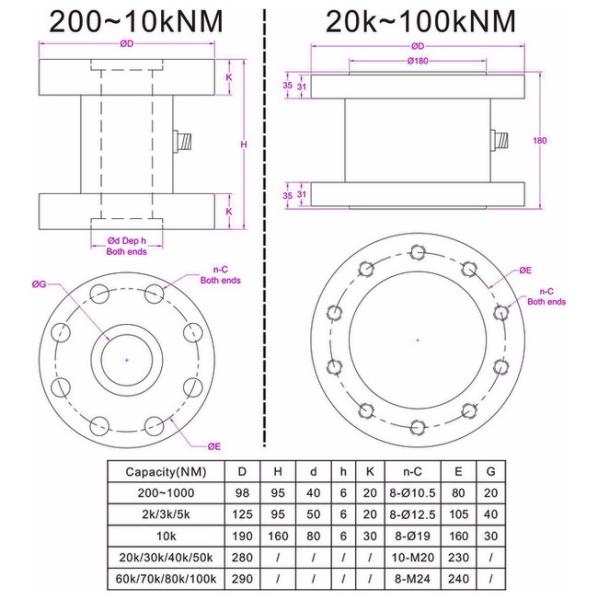

Dimensions

Specifications

Capacity	200NM 300NM 500NM 1000NM 2000NM 3000NM 5000NM 10000NM 20000NM 30000NM 40000NM 50000NM 60000NM 100000NM
Rated output	1.5 mV/V
Excitation	5-15V
Zero balance	±2% R.O.
Nonlinearity	±0.25% R.O.
Hysteresis	±0.25% R.O.
Nonrepeatability	±0.1% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	700±100 ohms
Output resistance	700±10 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP62
Material of element	Alloy steel
Cable	Ø5.5*3000mm 4-core shielded
Wiring code	Red--E+ Green--E- Yellown--S+ White--S-

Static torque sensors torque transducers flange to flange mounting
