Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Place of Origin : China

Brand Name : Forsentek

Model Number : FTA

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1000pcs/month

Usage : Torque measurement transducer

Theory : Strain gauge torque transducer

Output : Analog Sensor

Capacity : 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM

Contact Now

Torque measurement sensor torque measure transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Features

  • Aluminum/alloy steel construction,strain gauge technology
  • Flange to flange structure,easy to insall.
  • Analog output,high accuracy.
  • Reaction torque measurement.

Dimensions

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Specifications

Capacity

0.2NM 0.5NM 1NM 2NM 3NM 5NM

10NM 20NM 30NM 50NM 100NM
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 350(700) ohms
Output resistance 350(700) ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Aluminum alloy(Alloy steel for 50NM and 100NM)
Cable Ø5*3000mm 4-pin shielded cable
Wiring code Red--Exc+ Black--Exc- Green--Sig+ White--Sig-

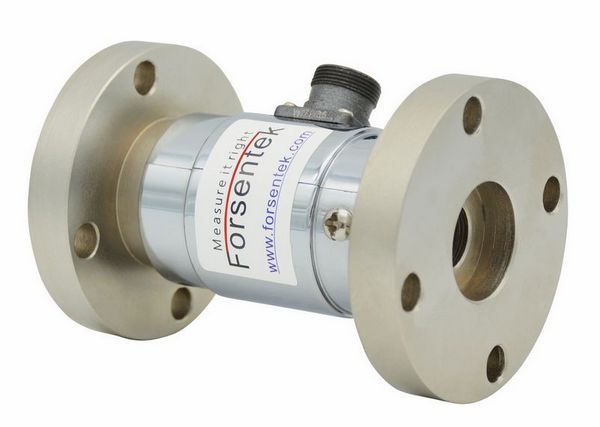

Flange to flange torque transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Torque measurement sensor 100Nm 50Nm 30Nm 20Nm 10Nm torque measure transducer

Ordering code:

FTA-0.2NM FTA-0.5NM FTA-1NM FTA-2NM FTA-3NM FTA-5NM

FTA-10NM FTA-20NM FTA-30NM FTA-50NM FTA-100NM
