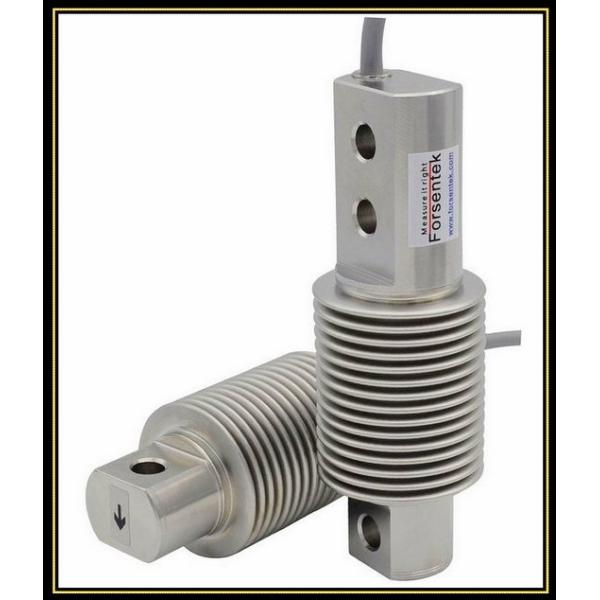

5kg 10kg 20kg 50kg 100kg load cell waterproof

Place of Origin : China

Brand Name : Forsentek

Model Number : FSH

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1000pcs/month

Usage : Hopper weighing system,belt scales

Theory : Resistance Sensor

Output : Analog Sensor

Contact Now

5kg 10kg 20kg 50kg 100kg 200kg 500kg load cell waterproof

5kg 10kg 20kg 50kg 100kg load cell waterproof

Features

  • Stainless steel construction
  • Laser welded,IP68 waterproof
  • Strain gauge technology,analog output,high accuracy

Dimensions

5kg 10kg 20kg 50kg 100kg load cell waterproof

Specifications

Capacity 5kg 10kg 20kg 50kg 100kg 200kg 300kg 500kg
Rated output 2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01 R.O.
Creep(30min) ±0.015 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.015% R.O./10oC
Temperature shift span ±0.015% R.O./10oC
Input resistance 390±10 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.3*3000mm
Wiring code

Blue-Exc+ Green-Sen+ White-Sig+

Black-Exc- Grey-Sen- Red-Sig- Yellow-Shield

Load cell IP68 protection

5kg 10kg 20kg 50kg 100kg load cell waterproof

Load cell waterproof

5kg 10kg 20kg 50kg 100kg load cell waterproof

High accuracy load cell FSH

5kg 10kg 20kg 50kg 100kg load cell waterproof
